Home > Product > Flammable Gas Safety Monitoring Sensor

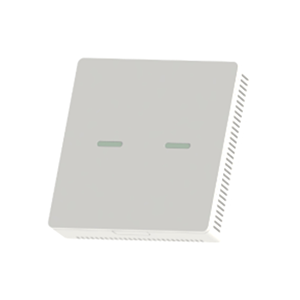

Combined CO&CH4 Gas Detector AM4301AM4301

Cubic AM4301 CO & CH4 alarm is a dual-gas leak alarm that integrated Cubic self-developed NDIR methane (CH4) sensor and electrochemical carbon monoxide (CO) sensor in one single device, designed for dual purpose safety monitoring in comprehensive residential and commercial applications.

Both Cubic NDIR methane sensor and electrochemical CO sensor have high selectivity for target gas. The dual-sensing design delivers high accuracy, fast response, and excellent long-term stability. With strong resistance to cross-interference and immunity to sensor poisoning, the alarm ensures reliable operation even in complex indoor environments.

Equipped with both audible and visual alarm functions, the alarm provides clear and immediate alerts when methane and carbon monoxide gas concentrations exceed preset thresholds and automatically resets when gas levels fall below safe limits.

AM4301 features a lifespan exceeding 10 years. Optional Wi-Fi and Bluetooth connectivity enable flexible integration into smart home and remote monitoring systems.

With a compact size, AM4301 is easy to install and suitable for a wide range of applications, including residential and commercial methane & carbon monoxide detection, fire alarm systems, making it a versatile and dependable solution for gas safety monitoring.
Show More

Features

  • NDIR technology for CH4 detection, electrochemical technology for CO detection
  • Dual gas detection integration for more reliable safety monitoring
  • Anti-cross interference, free of poisoning
  • High accuracy and good long term stability
  • Fast Response
  • Audible and visual warning, high-decibel alert
  • Fault self-check function, data upload automatically
  • Excellent long-term stability
  • Long life time over 10years

Specifications

CO2 Sensor CM1106-C
Principle NDIR - CH4, Electrochemical - CO
Target Gas CH4, CO
Measurement Range CH4: 0-5%Vol; CO: 0-1000ppm
Alarm Threshold CH4: 3500ppm; CO: 220ppm
Preheating Time 180s±10s
Working temperature -10°C ~ 40°C
Working humidity 0-93%RH (non-condensing)
Storage temperature -10°C ~ 55°C
Storage humidity 0-95%RH (non-condensing)
Power Supply DC 12V
Alarm mode Audio & Visual Alarm
Life time >10 Years
Dimension 94*94*36mm

Show More
