Portable Spirometer for Medical and Home Use

Spirometer

Product0

Get the Products

Spirometer

Ultrasonic Spirometer

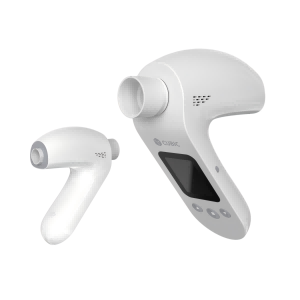

Gasboard 7021(Residential Type)

Gasboard-7021

Cubic Handheld Ultrasonic Spirometer(For home use) is a powerful measurement device for asthma checking, COPD and other respiratory diseases, evaluating lung function of smoker, chronic cough and people with multiple sputum, etc.

Learn more

Specifications Features

Measurement range

FVC(0.5～8)L ±3% or ±0.050L (whichever is larger);
PEF (0～14) L/s ±10% or ±0.30L/s (whichever is larger);
FEV1(0.5～8)L ±3% or ±0.050L(whichever is larger)

Atmosphere pressure

80Kpa~106Kpa

Power supply

DC 3.2V~4.2V (Powered by lithium battery)

Working temperature

5℃~40℃
- Ultrasonic gas flow sensor adopted
- Designed for home use, portable and lightweight
- Without needing calibration, long lifespan
- Real-time accurate data display, history record available
- Real-time test report review
Ultrasonic Spirometer
Gasboard 7020 (Hospital Type)

Gasboard-7020

Cubic Handheld Ultrasonic Spirometer is suitable for the patients who need pulmonary function test. It can test the VC, FVC, MVV etc. technical indicators for doctor's diagnosis reference.

Learn more

Specifications Features

Items Ranges Max error

VC (Vital Capacity) (0.5-8)L ±3% or ±0.050L whichever is larger;
FVC(Forced Vital Capacity) (0.5-8)L ±3% or ±0.050L whichever is larger;
MVV(Maximum Ventilatory Volume) 250L/min ±3% or ±4.5L/min whichever is larger

Relative Humidity

≤80% RH (non-condensing)

Atmosphere pressure

80kPa-106kPa

Ambient temperature

5℃-40℃
- Ultrasonic gas flow sensor adopted
- No maintenance, long lifespan
- Multiple parameters measurement available
- Real-time curve display, patient information management, printable, etc.
- Dedicated disposable mouthpiece, suitable for children and adults
Diffusion Capacity for Carbon Monoxide of Lung(DLCO) NDIR Gas Sensor
Gasboard-2050

Gasboard-2050

DLCO gas sensor Gasboard-2050 can realize online measurement of CH4 and CO for DLCO based on non-dispersive infrared (NDIR) technology.

Learn more

Specifications Features

Operating Principle

NDIR

Measured Gas

CO,CH4,CO2

Measurement Range

CO: 0~3500ppm(0~0.35%vol);
CH4: 0~3500ppm(0~0.35%vol);
CO2: 0~5%vol(up to 10%available)

Accuracy

±1% FS
- Nondispersive infrared sensor for online measurement of CH4, CO and CO2
- Mechanical chopped IR source
- Fast response times（T10-T90:<300ms @1L/min flow）
- Excellent stability, high accuracy（±1% FS）
- Temperature and pressure compensated
- Wider working condition
- High performance-cost-ratio
Fast Response NDIR Gas Sensor For Breath Gas Analysis

Gasboard-2000-FR CO2

Fast Response NDIR Gas Sensor Gasboard-2000-FR CO2 allows continuous measurement of respiratory co2 concentrations based on non-dispersive infrared (NDIR) technology.

Learn more

Specifications Features

Measurement Range

CO2: 0~10% （could be customized)

Resolution

0.01%

Accuracy

±3%
- NDIR infrared principle detection to ensure high accuracy of measurement results
- Automatic temperature and pressure compensation
- Suitable for long-time online detection, long life, stable and reliable
- Small size, easy to integrate
