Ultrasonic Oxygen Flow Sensor

Product0

Get the Products

Table Overview for Cubic Ultrasonic Oxygen and Flow Sensors

Model Number	Technology	Feature	Concentration Measure Range	Flowrate Measure Range	Key Recommendation	Notes
Ultrasonic Oxygen Sensor Gasboard-7500H Series Gasboard-7500HA	Ultrasonic	\| Oxygen concentration and flow measurement	0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen)	0~10L/min	Main-Stream: Portable Oxygen Concentrator (3L/5L/10L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator	High accuracy. No-consuming parts. Long Lifespan.	Specifications Features Feature \| Oxygen concentration and flow measurement Concentration Measure Range 0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen) Flowrate Measure Range 0~10L/min Key Recommendation Main-Stream: Portable Oxygen Concentrator (3L/5L/10L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator
0~5LPM Ultrasonic Flow Sensor Gasboard-7500H-OPC Gasboard-7500HA-RH	Ultrasonic	\| Oxygen concentration and flow measurement	0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen)	0~10L/min	Main-Stream: Portable Oxygen Concentrator (3L/5L/10L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator	High accuracy. No-consuming parts. Long Lifespan. With humidity compensation.	Specifications Features Feature \| Oxygen concentration and flow measurement Concentration Measure Range 0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen) Flowrate Measure Range 0~10L/min Key Recommendation Main-Stream: Portable Oxygen Concentrator (3L/5L/10L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator
Ultrasonic Oxygen Sensor Gasboard-8500FS-L40 Gasboard-8500FS-L40	Ultrasonic	\| Oxygen concentration and flow measurement	0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen)	0~40L/min	Main-Stream: High-End Portable Oxygen Concentrator (>10L,usually up to 20L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator	High accuracy. No-consuming parts. Long Lifespan.	Specifications Features Feature \| Oxygen concentration and flow measurement Concentration Measure Range 0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen) Flowrate Measure Range 0~40L/min Key Recommendation Main-Stream: High-End Portable Oxygen Concentrator (>10L,usually up to 20L) Side-Stream (By-pass): Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator
Ultrasonic Oxygen Sensor Gasboard-8500FS-L240 Gasboard-8500FS-L240	Ultrasonic	\| Oxygen concentration and bigger flow measurement For flow, it support 0~240L/min	0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen)	0~240L/min	Main-Stream: Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator	Fast response. Combined solution to measure oxygen concentration,flow rate,temperature and humidity.	Specifications Features Feature \| Oxygen concentration and bigger flow measurement For flow, it support 0~240L/min Concentration Measure Range 0 ~ 100% (for pure tank oxygen) 20.5 ~ 95.6% (for PSA oxygen) Flowrate Measure Range 0~240L/min Key Recommendation Main-Stream: Medical Oxygen Ventilator, High-flow Oxygen Therapy, Medical Oxygen Generator

Ultrasonic Oxygen Flow Sensor

Ultrasonic Oxygen Sensor

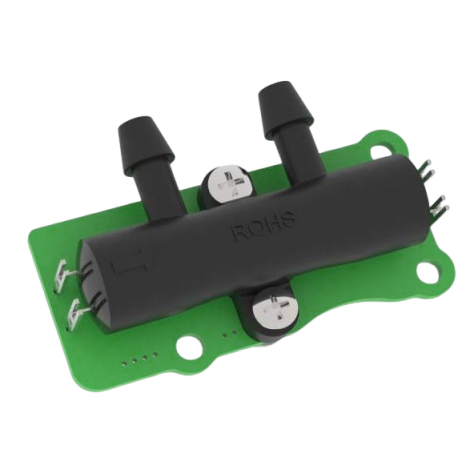

Gasboard-7500HA-BC

Gasboard-7500HA-BC

Cubic Gasboard-7500HA-BC is specially designed for pulse oxygen concentrator. It can realize high accuracy and high resolution measurement for oxygen concentration and flow rate. Gasboard-7500HA-BC series provide a new, economical, durable option for system designers who is seeking for medical oxygen sensor for pulse oxygen concentrators. By adopting ultrasonic detecting technology and principle of TOF (time of flight) measurement, Gasboard-7500HA-BC series have great performances: excellent sta...

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

O2 Concentration:0%-100%
O2 Flow Rate:0~2L/min

Detection Accuracy

O2 Concentration: ±1.5%FS@ (5~45)℃
O2 Flow Rate: ±0.1L/min@ (5~45)℃

Resolution

O2 Concentration: 0.1%
Flow Rate: 0.01L/min
Ultrasonic Oxygen Sensor
Gasboard-8500FS-L240

Gasboard-8500FS-L240

Gasboard-8500FS-L240 is Cubic's ultrasonic technology 5-in-1 combined sensor solution to measure flow rate, oxygen concentration, temperature, pressure and humidity.

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

O2 Concentration: 0~100%
O2 Flow Rate: 0-240slm

Detection Accuracy

O2 Concentration: ±2.5%FS@(10~40)℃;0~40%RH
±3%FS @(5~45)℃;0~95%RH (non-condensing)
O2 Flow Rate: ±0.2L/min (<10L/min)
±2.0% reading (≥10L/min)

Resolution

O2 Concentration：0.1%;
O2 Flow Rate：0.1L/min
Ultrasonic Oxygen Sensor
Gasboard-7500H Series

Gasboard-7500H

The gasboard-7500H ultrasonic oxygen sensor module is to measure oxygen flow and concentration in binary gas for oxygen concentrator or ventilator. It is with higher accuracy and shorter response time.

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

O2 Concentration:20.5%-95.6%；
O2 Flow Rate:0~10L/min

Detection Accuracy

O2 Concentration: ±1.5%FS@ (5~45)℃
O2 Flow Rate: ±0.2L/min@ (5~45)℃

Resolution

O2 Concentration: 0.1%
O2 Flow Rate: 0.1L/min
Ultrasonic Oxygen Sensor
Gasboard-8500FS-L40

Gasboard-8500FS-L40

Gasboard-8500FS-L40 is ultrasonic oxygen sensor and can measure flow rate, concentration, temperature, humidity in binary gases. The oxygen flow rate range is 0 to 40L/min.

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

O2 Concentration: 0%~100%
O2 Flow Rate: 0-40L/min

Pressure Drop

200Pa @40L/min flow rate

Sampling Interval

10ms (100 data per second)
Ultrasonic Gas Flow Sensor
Gasboard-7500F

Gasboard-7500F

Gasboard7500F ultrasonic oxygen sensor is an economical gas sensor used to detect oxygen flow in binary gases with longer span life more than 5 years.

Learn more

Specifications Features

Detect Principle

Ultrasonic Technology

Detection Range

0~40L/min

Detection Accuracy

±0.6L/min@(10~50)℃

Resolution

0.1L/min
