NDIR ETCO2 Sensor

NDIR Sidestream EtCO2 Sensor
MED-CD1001

MED-CD1001

Cubic MED-CD1001 is an NDIR sidestream EtCO2 sensor module designed for OEM integration into patient monitors, ventilators, and anesthesia systems. It delivers high-accuracy (±0.1%Vol) CO2 measurement and fast response for real-time waveform capnography. With features like low power consumption (0.47W), robust EMI immunity, and a 10-year lifespan, it ensures reliable performance in critical care. The compact design with a UART interface simplifies integration, accelerating your medical device de...

Learn more

Specifications Features

Detection Principle

Non-Dispersive Infrared Technology (NDIR)

Detection Range

0~10%

Resolution

0.01%

Detection Accuracy

±0.1% Vol @0-5% Vol
±3% reading @5%-10% Vol
- NDIR (Non-Dispersive Infrared) technology
- High measurement accuracy (±0.1%Vol @ 0–5%Vol)
- Fast response time for real-time capnography waveform display
- Low power consumption(0.47W)
- Excellent immunity to EMI
- Compact and modular design for easy integration
- Long lifespan ≥10 years

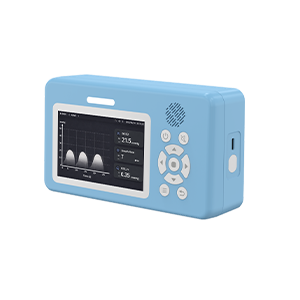

Portable EtCO₂ Monitor
MEC1010

MEC1010

Cubic provides reliable ODM/OEM solutions for portable EtCO2 monitors. Our MEC1010 capnography module leverages advanced NDIR technology to deliver high-accuracy EtCO2 and respiration rate monitoring, with real-time waveform display and intelligent alarms. Designed for seamless integration into your medical devices for EMS, ICU, and anesthesia applications. We offer full hardware and software customization to accelerate your product development and ensure compliance. Partner with us for scalable...

Learn more

Specifications Features

Detection Principle

Non-Dispersive Infrared Technology (NDIR)

Measure Range

0~150mmHg

Resolution

0-150mmHg: 0.1mmHg

Accuracy

0-40mmHg: ±2mmHg;
41-70mmHg：±5% of reading;
71-100mmHg：±8% of reading;
100-150mmHg：±10% of reading
- NDIR (Non-Dispersive Infrared) technology
- High-accuracy measurement of EtCO₂ and respiration rate
- Fast response time
- Real-time waveform display
- Intelligent apnea and ventilation alarms
- Long battery life ( up to 8 hours of continuous use on a single charge)
- Compact and portable design
- Customizable OEM/ODM solutions
Medical Mainstream EtCO2 Sensor Module CM2201

CM2201

Cubic medical mainstream EtCO2 sensor module CM2201 is designed with advanced dual beam non-dispersive infrared technology, and widely used in monitoring the respiratory end tidal CO2 concentration and respiration rate.

Learn more

Specifications Features

Principle

NDIR

Measure range

0~150mmHg

Resolution

0-150mmHg: 0.1mmHg

Accuracy

0-40mmHg: ±2mmHg;
41-70mmHg：±5% of reading;
71-100mmHg：±8% of reading;
100-150mmHg：±10% of reading
- Dual beam NDIR technology.
- Modular design, compatible with most of the major monitors to continuously measure CO2 concentration in gas and calculate End-tidal CO2 (ETCO2), and Respiration Rate (RR).
- Fast response.
- High accuracy, safe and reliable, robust and durable.
- Long service life. no wearing parts,low maintenance cost.
- Small and lightweight.
- Easy to use,plug and play, no need for regular calibration.
- EMI design can be against the interference of electromagnetic.
- Design to meet EN IEC 55014-1:2021,EN IEC 61000-3-2:2019+A1:2021,EN 61000-3-3:2013+A1:2019, EN IEC 55014-2:2021.
- OEM/ODM solution available: With 20 years of NDIR carbon dioxide detection technology to provide fast and professional customized ODM/OEM solutions with various communication protocols.
