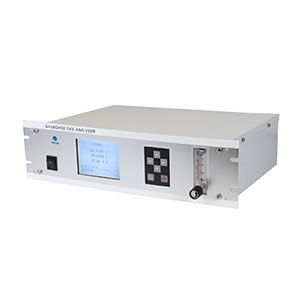

Online Infrared Flue Gas Analyzer Gasboard-3000Plus.png

Online Infrared Flue Gas Analyzer Gasboard-3000PlusGasboard-3000Plus

Gasboard 3000Plus is designed with world-leading micro-flow infrared sensor, is able to measure continuously simultaneously concentration of CO,CO2,SO2,NO,especially for lower range measurement. It is an ideal solution for monitoring in fields of boiler, power plant, combustion efficiency monitoring for various industrial furnaces or refuse incinerator, process and security monitoring.
Show More
Product Inquiry

Features

  • Adopting micro-flow NDIR gas sensor technology, higher precision and longer life time.
  • Monitoring the loweer range of SO2, NO, CO within 200ppm.
  • No cross interference between measurement gases.
  • Diagnostic function can check sensor status.
  • Sampling flow rate fluctuations have no effect on the measurement results.
  • Accurate measurement of low concentration gas.
  • Built-in pump to achieve automatic zeroing.
  • Real-time continuous monitoring concentration of SO2, NO, CO, CO2, O2 , measurement component is optional.
  • LCD (320*240) display.
  • Digital and analog signal output.

Specifications

CO2 Sensor CM1106-C
Measurement SO2,NO,CO,CO2,O2
Technology SO2,NO,CO,CO2(Micro-flow NDIR);O2(ECD or Paramagnetic)
Range SO2:0-200ppm NO:0-200ppm;CO:0-200PPM; CO2,O2:0-25%
Measurement range can be customized.
Resolution SO2,NO,CO:1ppm CO2,O2:0.01%
Precision SO2,NO,CO,CO2:≤1% FS O2:≤2% FS
Repeatablity SO2,No, CO,O2,O2≤1% FS
Communication Port RS-232/RS-485
Gas Flow 0.7-1.2 L/min
Inlet Pressure 2kPa-50kPa
Sampling Gas Requirement No dust, no water vapor
Response Time <15s (UV NDIR)
Output 4-20mA
Power Supply 110V/220V±44V AC5OHz±1Hz
Work Temperature 0-50℃
Relative Humidity 95% non condensing
Ambient Air Pressure 86-108kPa
Dimension 485*400*132mm (W*L*H)
Weight 18kg
