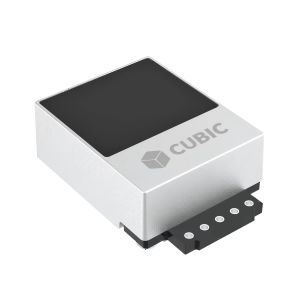

Cubic CM1108UL is an ultra-low power CO2 sensor developed based on NDIR technology.
Adopting ultra-low power LED light source, CM1108UL achieves super low power consumption less than 30μA, making it ideal for battery-powered or energy-constrained applications. Based on NDIR technology, it offers high accuracy ± (40ppm+3% of reading), under a wide measurement range from 400 to 5,000 ppm, meeting the requirements of RESET and WELL standards. Furthermore, with automatic baseline correction mechanism, it ensures maintenance-free operation and robust performance over a long lifespan of up to 15 years.
With compact design, Cubic CM1108UL ensures easy integration across a variety of applications including battery powered air quality monitor, battery powered HVAC system controller, portable battery powered CO2 meter and fresh air systems.
| CO2 Sensor CM1106-C | |
|---|---|
| Operating Principle | NDIR (Non-dispersive Infrared) |
| Measurement Range | 400-5000ppm |
| Measurement Accuracy | ± (40ppm+3% of reading) |
| Average Working Current | ≤30μA |
| Lifetime | ≥ 15 years |
| Working Condition | 0 ~ 50℃; 0~95%RH (non-condensing) |
| Power Supply | DC 3.3V-5.5V |
| Communication | UART_TTL/ IIC |
| Dimmension | L34*W21*H12(mm) |
| Weight | 5g |
