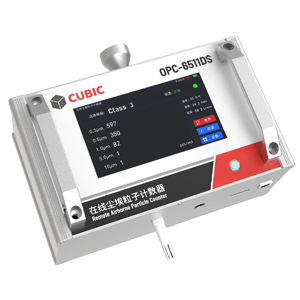

Portable Light-Scattering Particle Counter
OPC-6511DSOPC-6511DS

Cubic OPC-6511DS is a portable particle counter that utilizes advanced light scattering technology for precise measurement of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm particulates.The device supports RS485 Modbus RTU and RJ45 MQTT communication, which features an intuitive 7-inch touch screen to provide real-time measurement results. The built-in rechargeable lithium battery offers extended battery life, enhancing the efficiency of outdoor detection. With precise detection capabilities and portability, OPC-6511DS offers an improved user experience, making it ideal for applications in cleanrooms, medical manufacturing, semiconductors, and more.
Show More
Product Inquiry

Features

  • Light-scattering technology for continuous monitoring of particulate measurement.
  • 5-channel output for particle sizes of 0.3μm, 0.5μm, 1.0μm, 5.0μm, and 10μm, with measurements expressed in pcs/28.3 LPM or pcs/m³.
  • Audible and visual alarms for particle counts that exceed predetermined thresholds.
  • Built-in rechargeable lithium battery designed for extended and mobility use.
  • Intuitive 7-inch touch screen for real-time monitoring.
  • Real-time display cleanroom ISO 14644-1 grade level.
  • Calibration coefficient correction against standard equipment.

Specifications

CO2 Sensor CM1106-C
Working Principle Light scattering
Measurement Range 0~1,000,000 pcs/28.3L
Output Channels >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm
Count Efficiency 50%@≥0.3μm, 100%@≥0.5μm;
Condition: 25±2℃, 50±10%RH
Data Refresh Time 1 second
Operating Conditions 0°C ~ 45°C, 0 ~ 95%RH (Non-condensing)
Operating Voltage DC 24V±15%
Average Operating Current ≤3A
Battery Standby Time >5 hours (2 minutes operation, 28 minutes sleep)
Communication RS485 Modbus RTU, RJ45 MQTT
Sampling Flow Rate 28.3L/min (1.0 CFM)
External Sampling Hose Inner diameter: ф8mm；Length: ≤3m
Work Mode Adjustable (Default: 2 minutes operation, 28 minutes sleep)
Display 7-inch Color Touchscreen
