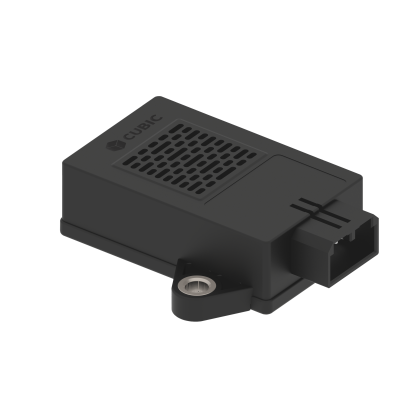

Li-Battery Thermal Runaway Monitoring Pressure Sensor ATRS-1015.png

Li-Battery Thermal Runaway Monitoring Pressure Sensor
ATRS-1015ATRS-1015

Cubic ATRS-1015 is an automotive-grade pressure sensor developed based on advanced MEMS technology to provide early warning signals of thermal runaway events in lithium-ion battery packs. The  pressure sensor monitors the pressure change inside the battery pack and transmits the measurement data to the battery management system (BMS) via CAN communication, enabling prompt identification of abnormal pressure conditions and supporting timely safety intervention to enhance battery system safety.

With a response time of less than 1 second, the ATRS-1015 promptly detects abnormal pressure changes, enabling the BMS to initiate timely safety measures. The low-power consumption further supports longer standby operation and integration into power-constrained battery systems.  Furthermore, the pressure sensor maintains stable measurement accuracy across full operating temperature range and offers a long lifespan of more than 15 years, supporting long-term battery safety monitoring.

Show More
Product Inquiry

Features

  • MEMS technology
  • Fast response for early warning signal
  • Stable accuracy across wide temperature range
  • Low-power consumption
  • Configurable absolute-pressure and pressure-change-rate thresholds

Specifications

CO2 Sensor CM1106-C
Operating Principle MEMS
Measurement Type Pressure
Measurement Range 50kPa~165kPa
Maximum Pressure Limit 800kPa
Resolution 0.1kPa
Measurement Accuracy 0℃~85℃: ≤1%
-40℃~0℃ & 85℃~125℃: ≤1.5%
Data Refresh ≤1s
Response Time ＜1s
Signal Output CAN
Lifetime ＞15 years
Working Condition -40℃~105℃; 0~99%RH (non-condensing)
Storage Condition -40℃~125℃; 0~99%RH (non-condensing)
Working Pressure 50kPa~300kPa
Power Supply 9~32VDC, standard voltage +12VDC / 24VDC
Average Working Current Normal working mode: ＜20mA
Low power mode: ＜0.2mA
Quiescent Current ＜100uA, sleep mode
