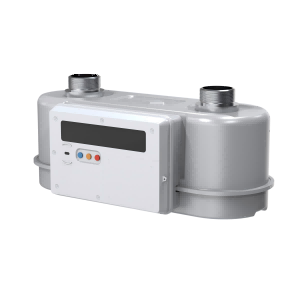

Steel-case Commercial Ultrasonic Gas Meter USM-CS-G10&G16.png

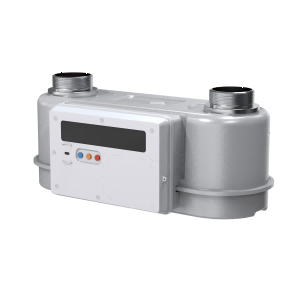

Steel-case Commercial Ultrasonic Gas Meter
USM-CS-G10,USM-CS-G16,USM-CS-G25,USM-CS-G40USM-CS-G10,USM-CS-G16,USM-CS-G25,USM-CS-G40

USM-CS Series Ultrasonic Gas Meter is a type of electronic meter that adopts TOF (Time of Speed) principle to measure flow velocity of gas medium.Employing advanced ultrasonic technology, this meter ensures high-precision, wear-free gas flow measurement, providing accurate and reliable results over time.

With Cubic's advanced algorithm technology, the Cubic ultrasonic gas meter offers excellent adaptability to real gas conditions and can accurately measure natural gas, natural gas with 23% hydrogen (H₂), and LPG.

USM-CS Series integrates seamlessly with NB-IoT、LTE、LoRa and RS485 technologies, facilitating real-time remote monitoring and management. This allows users to effortlessly track gas consumption and monitor the meter’s status from anywhere.

Featuring a center distance compatible with existing pipe spacing in most countries, the meter eliminates the need for eccentric adapters or pipeline modifications, reducing installation complexity and cost.

Compliant with international standards such as DLMS, WELMEC 72, UNI/TS, and MID EN14236 & EN 12405-1:2021, the USM-CS Series Ultrasonic Gas Meter is well-suited for global market applications.

Product Inquiry

Features

Long-time Accuracy
Ultrasonic technology features no mechanical wear, ensuring no accuracy degrade over long-term usage and no magnetic field effects
Good Gas Sources Adaptability
Various real-gas test and intelligent software algorithm ensure compatibility with different gas sources.
Low pressure loss & maintenance-free
With no moving parts, the meter offers minimal obstruction to gas flow and eliminates wear and tear, requiring no maintenance
Real-time temperature and pressure correction
Temperature and pressure correction are standard.
Low Power Consumption
Both hardware and software patent design ensure ultra-low power consumption, enabling a battery lifespan of over 10 years.
Integrated Remote Transmission Modules
Built-in NB-IoT、LTE、LoRa and RS485 modules allow real-time gas consumption monitoring and meter status management.
Instant Alarms for Easy Service
Alerts are triggered for tampering attempts, low battery levels, and battery removal, ensuring timely service.
Strong expandability
The fully electronic design supports easy expansion for additional functions such as remote charging, valve control, and various alarms.

Specifications

	CO2 Sensor CM1106-C
Measurement Range	USM-CS-G10: 0.1～16 m³/h [3.53 ~ 565.03 ft³/h] USM-CS-G16: 0.16～25 m³/h [5.65 ~ 882.87 ft³/h] USM-CS-G25: 0.25～40 m³/h [8.83 ~ 1412.59 ft³/h] USM-CS-G40: 0.4～65 m³/h [14.13 ~ 2295.45 ft³/h]
Accuracy	Class 1.5
Error (@ -25℃～55℃; -40℃～60℃)	Qmin≤Q<0.1Qmax: ±3%; 0.1Qmax≤Q≤Qmax:±1.5%
Gas Medium	Natural Gas, Natural Gas+23%H2, LPG
Case Housing	Steel Case
Battery	Lithium battery ER34615/3.6V
Connector Type	Screw thread,G2(G10, G16) Screw thread,G2-1/2(G25, G40)
Dimensions(mm)	476.9222.4202.5
Weight(kg)	12
Center Distance of ConnectoCS (mm)	280;250(optional)(G10, G16) 335(G25, G40)
Working Pressure	0~50kPa / 0~7.25psi
Pressure Loss	375pa / 0.054psi or less(G10 and G16) 300pa / 0.044psi or less(G25) 400pa / 0.058psi or less(G40)
Working Temperature	-25℃～55℃; -13℉ ~ 131℉
Storage Temperature	-25℃～55℃; -13℉ ~ 131℉
Protection Class	IP65
