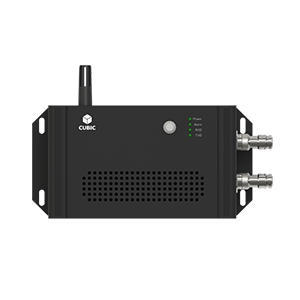

SF6 and Oxygen Gas Detector

SF6 and oxygen gas detector is used for real-time monitoring concentration of sulfur hexafluoride and oxygen as well as ambient temperature and humidity in the workplace of indoor electrical equipment so as to give early warning according to the alarm limit settings which is widely used in gas analysis industry, industrial process control, environmental detection and power plant substations and other fields. The detector is also equipped with a PIR (Passive Infrared) sensor to sense human body for safety reason. Detection data can be uploaded in real-time through RS485 or Wi-Fi to a controller or cloud.
Features
  • Non-Dispersive Infrared (NDIR) technology
  • Fast response time
  • Accuracy guaranteed at full temperature and humidity range
  • Automatic zero calibration function to overcome drift and false alarms
  • PIR infrared monitoring function supports human body induction
  • Historical data record, query and automatic alarm record
  • Small size and compact structure for easy installation
  • High reliability and long-life time (>10 years)
Specifications
CO2 Sensor CM1106-C
Working Principle SF6: NDIR
O2: Limiting Current (Zirconia)
Target Gas SF6,O2
Gas Detecting Range SF6:0-1500ppm
O2:0-25.0%vol
Gas Detecting Resolution SF6:1ppm
O2:0.1%vol
Gas Detecting Accuracy SF6:±2%FS
O2:±0.5%vol
Alarm Error SF6:±5%reading
O2:±0.5%vol
Alarm Threshold SF6:1000ppm(adjustable)
O2:18%vol(adjustable)
Response Time SF6:T90≤60s(diffusiontype)
O2:T90≤60s
Temperature Detecting Range -30℃-+85℃
Temperature Detecting Accuracy ±1℃(@FullScale)
Humidity Detecting Range 0-99%RH
Humidity Detecting Accuracy ±5%RH
PIR Detecting Range ≥3m
Product Size 205*105*58mm
Product Weight <1.5kg
Outputs 1 RS485 Communication
2 WIFI Communication
3 RS232
Designed Lifespan >10Years
IP Grade IP54(can be customized according to actual application)
Temperature and Humidity -20℃-+50℃;0-90%RH(non-condensing)
Atmosphere Pressure 86kPa-106kPa
Power Supply AC220V±10%(50Hz±1%)
Rated Power <15W
