Ultra-small Ultrasonic Oxygen Sensor
Gasboard-6500HMGasboard-6500HM

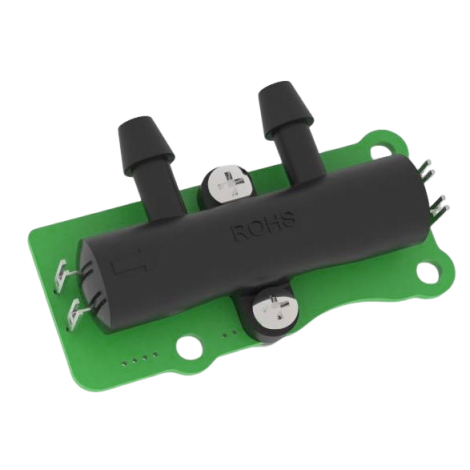

Cubic Gasboard-6500HM is an ultra-small ultrasonic oxygen sensor specifically developed for portable oxygen concentrators (POCs). Utilizing ultrasonic technology and time-of-flight (TOF) principle, it delivers highly accurate measurements of both oxygen concentration and flow rate. Gasboard-6500HM’s ultra-small size enables easy integration into space-constrained POCs, while its fast response ensures reliable and precise monitoring under pulse mode. In addition, featuring full temperature compensation, Gasboard-6500HM ensures consistent measurement accuracy across varying environmental conditions. With its no-moving-parts design, Gasboard-6500HM provides maintenance-free operation and ensures a long service life over 15 years. Gasboard-6500HM offers a precise, reliable and cost-effective solution for portable oxygen concentrator applications.

Product Inquiry

Features

Ultrasonic technology for oxygen concentration and flow measurement
High accuracy
Ultra-small size (W50*H22*D31mm)
Fast response (T90≤1.5s)
Full temperature compensation
Maintenance-free operation
Long lifespan≥15 years

Specifications

	CO2 Sensor CM1106-C
Detect Principle	Ultrasonic
Target Gas	Oxygen
Measurement Range	O₂ Concentration: 0-100%;
Accuracy	±2.0%FS @5~50°C;
Resolution	0.1%
Response Time	T90 ≤1.5s
Working Conditions	5~50°C;0~95%RH (non-condensing)
Storage Conditions	-20~60°C;0~95%RH (non-condensing)
Operating Voltage	DC 4.75V-5.25V (ripple ≤50mV)
Average Current	≤35mA
Communication Interface	UART_TTL (3.3V)
Life Span	≥15 years
Dimensions	50(W) × 22(H) × 31(D) mm
