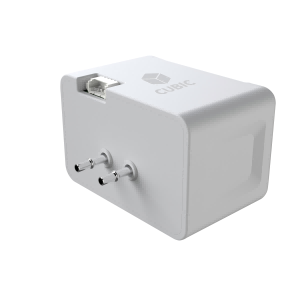

| CO2 Sensor CM1106-C | |
|---|---|
| Detecting Principle | NDIR (non-dispersive infrared) technology |
| Measurement gas 1) | Sevoflurane(C4H3F7O), Desflurane(C3H2F6O), Isoflurane(C3H2ClF5O),CO₂, N₂O |
| Measurement Range | Sevoflurane: 0 - 8 %Vol; Desflurane: 0 - 18 %Vol; Isoflurane: 0 - 5 %Vol; CO₂: 0 - 15 %Vol; N₂O: 0 - 100 %Vol |
| Accuracy | Sevoflurane,Desflurane,Isoflurane: ±(0.15% Vol + 5% of reading); CO₂: ±(0.2% Vol + 2% of reading); N₂O: ±(2 %Vol+ 2% of reading) @ N₂O≤85%Vol |
| Resolution | Sevoflurane,Desflurane,Isoflurane: 0.15% Vol; CO₂, N₂O: 0.1% Vol |
| Sampling Frequency | 100Hz |
| Startup Time | ≤30s |
| Response time 2) | Sevoflurane,Desflurane,Isoflurane: T90< 600ms; CO₂,N₂O: T90< 250ms |
| Sampling method | Suction; Air pump |
| Protection Level | IP65 |
| Output | RS232 |
| Dimensions | 45.5mm*32.0mm*29.5mm |
| Lifetime | ≥10years |
| Shell Material | Photosensitive resin |
| Working Temperature | 10 ~40℃ (50 - 104℉) |
| Storage Temperature | -25 ~ 60℃(-13 - 140℉) |
| Working Humidity | 10-98%RH (non-condensing) |
| Storage Humidity | 10-90%RH (non-condensing) |
| Working Pressure | 660~1060mbar (with pressure compensation) |
| Storage Pressure | 500~1060mbar |
| Power Supply | 5V±5% DC |
| Average Working Current 3) | ＜300mA (@25℃,5V) |
Remark:
1) The sensor can simultaneously detect anesthetic gas (one of sevoflurane, desflurane, isoflurane) and CO₂, N₂O concentrations.
2) The response time is measured by passing 120mL/min of gas into the sensor at a background gas concentration of 60% of the full scale.
3) The current is measured at room temperature condition, and it may vary at high temperature or low temperature condition.
