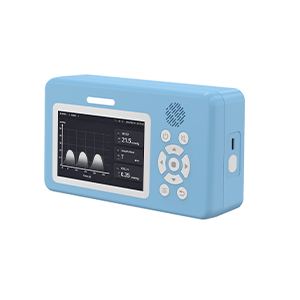

Cubic Portable EtCO2 Monitor is an OEM/ODM portable capnograph device designed for real-time measurement of end-tidal CO2 (EtCO2) concentration and respiration rate. Utilizing advanced non-dispersive infrared (NDIR) technology, it delivers highly accurate and reliable capnography performance at respiratory rates of up to 150 breaths per minute, providing clear real-time waveform display. Featuring fast response, precise waveform tracking, and intelligent apnea and ventilation alarms, the monitor ensures accurate and timely clinical assessment.
With compact, portable design and extended battery life, Cubic Portable EtCO₂ Monitor enables flexible use across operating rooms, emergency departments, and intensive care units (ICUs). Offering customizable features and flexible configuration options, the device can be tailored to meet specific clinical and regulatory requirements for anesthesia monitoring, CPR guidance, and mechanical ventilation assessment.
| CO2 Sensor CM1106-C | |
|---|---|
| Detection Principle | Non-Dispersive Infrared Technology (NDIR) |
| Measure Range | 0~150mmHg |
| Resolution | 0-150mmHg: 0.1mmHg |
| Accuracy | 0-40mmHg: ±2mmHg; 41-70mmHg：±5% of reading; 71-100mmHg：±8% of reading; 100-150mmHg：±10% of reading |
| Respiration Rate Range | 0 to 150 Breaths Per Minute (BPM) |
| Respiration Rate Accuracy | ±1 breath |
| Data Interface | RS232, TTL(customized) |
| Working Condition | 5℃-45 ℃, 0-80% RH(Non condensing) |
| Storage Condition | -10℃ to 55 ℃,0-93% RH(Non condensing) |
You can contact Cubic by telephone or email, or you can submit an online Request for Quotation Form.
