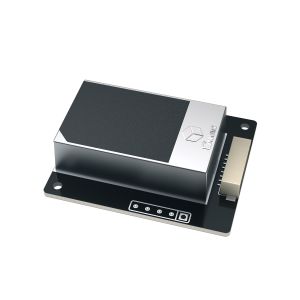

Residential Fuel Gas CH4 Sensor JW-05

JW-05 is a dual-channel CH4 sensor developed based on NDIR technology. It can monitor the environmental CH4 gas leakage in real-time. This product has features of high accuracy, long-term stability, and can be widely used in fields such as household gas alarm, portable gas detector, natural gas leakage detection and gas pressure regulating cabinet, etc.
Features
  • Dual-channel detection NDIR technology
  • High accuracy and sensitivity to methane gas
  • High accuracy over full temperature range
  • Long-term stability
  • Short recovering time from high-concentration ambient
  • Compact and easy to install
  • Long lifespan over 10 years
Specifications
CO2 Sensor CM1106-C
Detecting principle Non-dispersive Infrared Technology(NDIR)
Measurement range 0~100% LEL
Accuracy 0%~50%LEL: ±5%LEL;50%~100%LEL: ±10% of reading
Response time T90≤30s
Working temperature -20~60℃
Storage temperature -40~85℃
Working humidity 0-95%RH (non-condensing)
Storage humidity 0-95%RH (non-condensing)
Alarm point Default 10%LEL, optional from 5%~25%
Power supply DC 4.75V~5.25V
Average working current <1mA (without heater)/<50mA (with heater)
Dimension 40mm*33mm*10.3mm
Communication port UART, IIC, PWM
Lifespan >10 years
