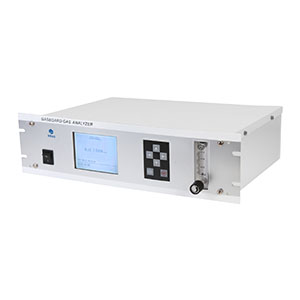

Online H2S Gas Analyzer Gasboard-3000UV.png

Online H2S Gas Analyzer
Gasboard-3000UVGasboard-3000UV

Gasboard-3000UV online high & low H2S gas analyzer is designed with advanced UV DOAS technology for H2S , to real-time online measure H2S component in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes.


Show More

Features

  • Adopting advanced UV DOAS technology with higher precision and longer life time.
  • Monitoring the lowest range of SO2 and NO within 100mg/m³.
  • No cross interference between measurement gases.
  • Diagnostic function can check sensor status.
  • Sampling flow rate fluctuations have no effect on the measurement results.
  • Accurate measurement of low concentration gas.
  • Built-in pump to achieve automatic zeroing.
  • Real-time continuous monitoring.
  • LCD (320*240) display.
  • Digital and analog signal output.

Specifications

CO2 Sensor CM1106-C
Measurement H2S
Technology UV DOAS
Range low range: 0-500ppm
high range: 0-5000ppm
(Note: measurement range can be customized.)
Resolution H2S: 1ppm
Precision H2S:<2%FS
Repeatability H2S:≤1%
Gas flow 0.7-1.2L/min
Inlet pressure 2kPa-50kPa
Sampling gas condition no dust, no water vapor
Response time(T90) <60s (UV DOAS)
Communication interace RS-232
Output 4-20mA
Power supply 110V/220V±44V AC 50Hz±1Hz
Work temperature 5-35℃
Relative humidity <95% non condensing
Ambient pressure 86-108kPa
Dimension 400*485*132mm(L*W*H)
Weight 18kgs
Show More
