Home > Product > Ultrasonic Water Meter

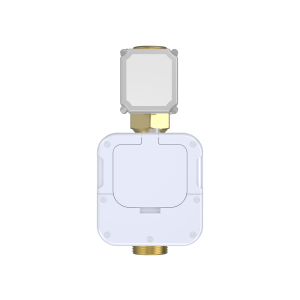

Ultrasonic Water Meter UWM-DN32DN40-WG.png.png

Ultrasonic Water Meter UWM-DN32/DN40-WGUWM-DN32/DN40-WG

The Cubic ultrasonic water meter, designed for residential and commercial applications, delivers exceptional accuracy in measuring both potable and non-potable cold water, including challenging conditions such as irrigation systems and water containing small particles. It also supports customized solutions for hot water applications.

Housed in a compact, tamper-proof, weatherproof, and UV-resistant casing, the Cubic ultrasonic water meter is especially robust, durable, and suitable for challenging climates. Unlike mechanical meters, the ultrasonic technology is unaffected by suspended particles in the water, making it a superior choice for reliable and long-lasting performance.

And ultrasonic water meter significantly enhances low flow measurement accuracy, offers long-term stability, and maintains the same turn-down ratio when installed in both horizontal and vertical orientations.

With optional wireless communication functions such as GPRS, NB-IoT, LoRaWAN, and LTE, the Cubic ultrasonic water meter supports remote reading of water consumption and status information. This enables a highly responsive infrastructure, allowing for immediate action. The meter also offers customized integrated solutions to facilitate data transmission to utility cloud platforms over private or public networks.

Designed for applications requiring high accuracy and long life, this advanced all-digital technology provides precise measurements without moving parts and high resistance to magnetic interference. Ultrasonic water meter ensures optimal revenue and consistent performance over time.
Show More
Product Inquiry

Features

  • No moving parts, ensuring long-term accuracy and low pressure loss;
  • High turn-down ratio for accurate low-flow measurements; customizable R500 option;
  • IP 68 rating, ideal for outdoor installations;
  • Up to 10 years of battery life;
  • 9-digit LCD for high-precision readings and versatile display options;
  • Local optical port for easy parameter reading and troubleshooting;
  • Integrated wireless communication module for remote monitoring and data collection;
  • Reverse flow is separately accumulated, guaranteeing precise recording of all water usage;
  • Alarms for active leaks, theft, backflow, meter damage/tampering, flow rate issues, and battery life indication;

Specifications

CO2 Sensor CM1106-C
R Value(Q3/Q1) 250
Minimum Working Flow(Q1) DN32: 0.04; DN40: 0.064
Boundary Flow(Q2) DN32: 0.064; DN40: 0.1024
Maximum Working Flow(Q3) DN32: 10; DN40: 16
Overload Flow(Q4) DN32: 12.5; DN40: 20
Measurement Precision Class 2
Cumulative Volume Resolution 0.001m3(User mode) 0.001L(Test mode)
Current Flow Rate Resolution 0.0001m3/h(User mode) 0.0001m3/h(Test mode)
Climatic and Mechanical Environments Class O (outdoor installation)
Electromagnetic Environment Level E2
Temperature Level T30
Protection Level IP68
Pressure Level MAP16
Pressure Loss Level △p40
Register Type LCD 9 digits + icons,straight reading, permanently sealed electronic LCD
Register Capacity 100,000 cubic meters
Sensitivity Level of Upstream/ Downstream Flow Field U5/D3
Battery 10 years
Sensitivity to Installation H/V
Wireless Communication GPRS
Data Storage Duration 720 hours for hourly data; 120 days for daily data; 120 months for monthly data
Water-Proof IP68
Show More
