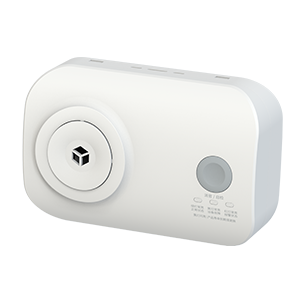

Electrochemical CO Sensor Module
ECO-5011A-01ECO-5011A-01

ECO-5011A-01 module is a battery-operable electrochemical sensor module with good selectivity and stability. It is a combination of mature electrochemical detection technology and sophisticated circuit design. ECO-5011A-01 has lower meansurement range of 0~1000ppm and excellent accuracy, which is widely used  for indoor air quality, residential CO alarms, fire detection systems,car park monitoring systems and so on.

Show More

Features

  • Excellent selectivity to CO and best-in-class cross interference
  • Lower measurement range 0~1000ppm with higher accuracy
  • High linear output characteristics for CO measurement
  • Low power consumption, applicable for battery-operated
  • Easy installation; free maintenance
  • Long lifespan over 10 years

Specifications

CO2 Sensor CM1106-C
Working Principle Electrochemical Technology
Measurement Range 0~1000ppm
Accuracy ± 5ppm or 5% whichever is larger
Resolution Ratio 0.5ppm
Response Time (T90)<60S
Zero Drift ≤10ppm at -20℃~40℃
Working Temperature -20℃~60℃
Storage Temperature -20℃~60℃
Storage Humidity 5﹪~99﹪RH (No condensation)
Life Time 10 years
