Air Quality PM 2 5 Particulate Matter Sensor

Particulate Matter Sensor

Product0

LED Infrared4

Laser5

Get the Products

Table Overview

Model	Application	Measurement Principle	Output	Measurement Range	Accuracy	Communication
Small Size Laser Particle Sensor PM2012SE-A/PM2012SE-B PM2012SE-A/PM2012SE-B	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~5000μg/m³	PM1.0/PM2.5: 0~100μg/m³ , ±10μg/m³ ; 101ug/m³~500μg/m³ , ±10% of reading PM10: 0~100μg/m³ , ±25μg/m³ ; 101~500μg/m³, ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)	UART_TTL/, I²C (3.3V/5V)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~5000μg/m³ Accuracy PM1.0/PM2.5: 0~100μg/m³ , ±10μg/m³ ; 101ug/m³~500μg/m³ , ±10% of reading PM10: 0~100μg/m³ , ±25μg/m³ ; 101~500μg/m³, ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)
Anti-dust Laser Particle Sensor PM2016 PM2016	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~1,000μg/m³	PM1.0/PM2.5: 0~100μg/m³ : ±10μg/m³ , 101~500μg/m³ : ±10% of reading PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)	UART_TTL/IIC, 3.3V (5V compatible)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~1,000μg/m³ Accuracy PM1.0/PM2.5: 0~100μg/m³ : ±10μg/m³ , 101~500μg/m³ : ±10% of reading PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)
Low Power Particle Sensor PM2105L PM2105L	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~1000μg/m³	PM1.0&PM2.5: 0 ~100μg/m³, ±10μg/m³; >100μg/m³, ±10% of reading Condition: 25±2℃, 50±10%RH Reference instrument: GRIMM Dust source: Cigarette PM10: 0 ~100μg/m³, ±30μg/m³; 101 ~1000μg/m³, ±30% of reading Condition: 25±2℃, 50±10%RH Reference instrument: GRIMM Dust source: Cigarette	UART_TTL (3.3V, compatible with 5V) I²C (3.3V, compatible with 5V) PWM (customized)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~1000μg/m³ Accuracy PM1.0&PM2.5: 0 ~100μg/m³, ±10μg/m³; >100μg/m³, ±10% of reading Condition: 25±2℃, 50±10%RH Reference instrument: GRIMM Dust source: Cigarette PM10: 0 ~100μg/m³, ±30μg/m³; 101 ~1000μg/m³, ±30% of reading Condition: 25±2℃, 50±10%RH Reference instrument: GRIMM Dust source: Cigarette
Laser Particle Sensor PM2008-API PM2008-API	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~5000μg/m³	PM1.0&PM2.5:0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading	UART_TTL, I²C, PWM(customized)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~5000μg/m³ Accuracy PM1.0&PM2.5:0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading PM10: 0~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading
Laser Particle Sensor with Screw Hole PM2008M-M PM2008M-M	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~5000μg/m³	PM1.0/PM2.5: 0~35μg/m³ : ±5μg/m³ , 35ug/m³~500μg/m³ : ±15% of reading PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)	UART_TTL, I²C, PWM(customized)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~5000μg/m³ Accuracy PM1.0/PM2.5: 0~35μg/m³ : ±5μg/m³ , 35ug/m³~500μg/m³ : ±15% of reading PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading (GRIMM, 25±2℃, 50 ±10%RH)
Anti-dust Laser Particle Sensor PM2009L PM2009L	Indoor	Light Scattering	PM1.0, PM2.5, PM10	0~5000μg/m³	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ ;101~500μg/m³, ±10% reading (GRIMM, 25±2℃, 50 ±10%RH） PM10: 0~100μg/m³, ±25μg/m³ ;101~500μg/m³, ±25% reading (GRIMM, 25±2℃, 50 ±10%RH）	UART_TTL/, I²C (3.3V/5V)	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 Measurement Range 0~5000μg/m³ Accuracy PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ ;101~500μg/m³, ±10% reading (GRIMM, 25±2℃, 50 ±10%RH） PM10: 0~100μg/m³, ±25μg/m³ ;101~500μg/m³, ±25% reading (GRIMM, 25±2℃, 50 ±10%RH）
LED Particle Sensor PM1003 PM1003	Indoor	Light Scattering	PM2.5	0~500μg/m³	0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading (25±2℃, 50±10%RH)	UART_TTL, PWM	Specifications Features Measurement Principle Light Scattering Output PM2.5 Measurement Range 0~500μg/m³ Accuracy 0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading (25±2℃, 50±10%RH)
LED Particle Sensor with Dust Correction PM1006K PM1006K	Indoor	Light Scattering	PM2.5	0~1000μg/m³	±20μg/m³ or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)	UART_TTL, PWM	Specifications Features Measurement Principle Light Scattering Output PM2.5 Measurement Range 0~1000μg/m³ Accuracy ±20μg/m³ or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)
LED Dust Sensor for Vacuum Cleaner PM1009 PM1009	Vacuum Cleaner	LED Infrared	10μm-60μm, 60μm-180μm, 180μm-500μm and 500μm	0-10000pcs	/	/	Specifications Features Measurement Principle LED Infrared Output 10μm-60μm, 60μm-180μm, 180μm-500μm and 500μm Measurement Range 0-10000pcs Accuracy /
LED Dust Sensor for Floor Scrubber PM1010 PM1010	Floor Scrubber	LED Infrared	/	0-100 levels	/	/	Specifications Features Measurement Principle LED Infrared Output / Measurement Range 0-100 levels Accuracy /
Outdoor Laser Particulate Matter Sensor Module PM3003S PM3003S	Outdoor	Light Scattering	PM1.0, PM2.5, PM4.25(optional), PM10 and TSP	0~30,000μg/m³	PM1.0/PM2.5: ≤100ug/m³: ±10μg/m³, 100~1000μg/m³: ±10% of reading PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15% of reading TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20% of reading Condition: 0℃~40℃, 50±10%RH; Reference instrument: MetOne BAM1020	UART/IIC	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP Measurement Range 0~30,000μg/m³ Accuracy PM1.0/PM2.5: ≤100ug/m³: ±10μg/m³, 100~1000μg/m³: ±10% of reading PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15% of reading TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20% of reading Condition: 0℃~40℃, 50±10%RH; Reference instrument: MetOne BAM1020
Outdoor Laser Particulate Sensor Module with Sampling Fan PM3006S PM3006S	Outdoor	Light Scattering	PM1.0, PM2.5, PM10 and TSP	0~30,000μg/m³	PM1.0/PM2.5:<50ug/m³: ±5μg/m³;50~1000μg/m³: ±10% of reading PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15% of reading TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20% of reading Condition: -30℃~70℃, 50±10%RH; Referemce instrument: Grimm	UART/IIC	Specifications Features Measurement Principle Light Scattering Output PM1.0, PM2.5, PM10 and TSP Measurement Range 0~30,000μg/m³ Accuracy PM1.0/PM2.5:<50ug/m³: ±5μg/m³;50~1000μg/m³: ±10% of reading PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15% of reading TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20% of reading Condition: -30℃~70℃, 50±10%RH; Referemce instrument: Grimm
Outdoor Laser Particulate Sensor Module with Sampling Fan PM3006S PM3003Q	Outdoor	Light Scattering	PM2.5, PM10 and TSP	0~1,000,000μg/m³	0~1 mg /m³: ±200μg/m³ 1~50 mg/m³: ±20% of reading (Test under typical working conditions, 25±2℃, 50±10%RH, with TSI8533 as the reference)	UART/IIC	Specifications Features Measurement Principle Light Scattering Output PM2.5, PM10 and TSP Measurement Range 0~1,000,000μg/m³ Accuracy 0~1 mg /m³: ±200μg/m³ 1~50 mg/m³: ±20% of reading (Test under typical working conditions, 25±2℃, 50±10%RH, with TSI8533 as the reference)

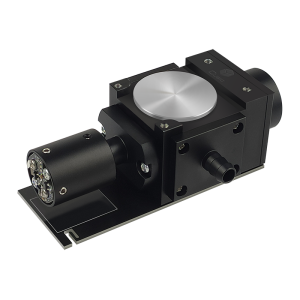

28.3LPM Laser Particle Count Sensor Module PM5100 PM5100	Cleanroom	Light Scattering	>0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm	0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf)	50%@≥0.3μm, 100%@≥0.5μm Condition: 25±2℃, 50±10%RH, calibration instrument Lighthouse 3100	UART	Specifications Features Measurement Principle Light Scattering Output >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm Measurement Range 0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf) Accuracy 50%@≥0.3μm, 100%@≥0.5μm Condition: 25±2℃, 50±10%RH, calibration instrument Lighthouse 3100
1LPM Laser Particle Count Sensor Module PM5000S PM5000S	Cleanroom	Light scattering	>0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm	0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf)	<100pcs/L: ±30pcs/L >100pcs/L: ±30% of reading Condition: 0C ~ 40C,50+10%RH (0°C ~ 40°C, 50 ±10%RH. Reference instrument TSI 9306. TSI 9306 count efficiency 50% @ 0.3 µm and 100% for particles >0.45 µm)	UART_TTL/IIC（3.3V/5V）	Specifications Features Measurement Principle Light scattering Output >0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm Measurement Range 0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf) Accuracy <100pcs/L: ±30pcs/L >100pcs/L: ±30% of reading Condition: 0C ~ 40C,50+10%RH (0°C ~ 40°C, 50 ±10%RH. Reference instrument TSI 9306. TSI 9306 count efficiency 50% @ 0.3 µm and 100% for particles >0.45 µm)

Particulate Matter Sensor

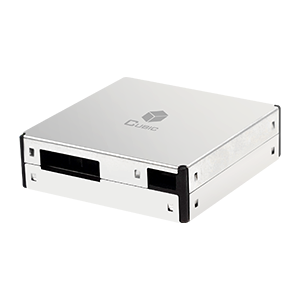

Anti-dust Laser Particle Sensor
PM2016

PM2016

PM2016 is an anti-dust structure laser particle sensor with PM1.0, PM2.5, PM10 output. It measures and calculates the suspending particle number which is within unit volume on the air exactly and output particle mass concentration μg/m3 directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle range

0.3μm~10μm

Measurement range

0~1,000μg/m³

Accuracy

PM1.0/PM2.5: 0~100μg/m³ : ±10μg/m³ , 101~500μg/m³ : ±10% of reading
PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Time to first reading

≤ 8 seconds
- The smallest size of available measurement: 0.3μm
- Real-time output particle mass concentration in μg/m3 is available
- VOC, temperature and humidity measuring function is reserved
- High accuracy, high sensitive and quick response
- Small size, compact structure, easy to install
- Same side air inlet and outlet
- Anti-dust structure

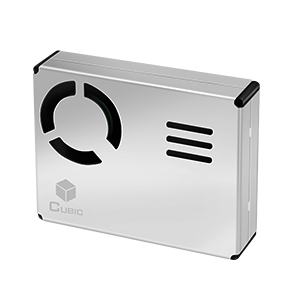

Laser Particle Sensor
PM2008-API

PM2008-API

PM2008-API laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding. Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~5000μg/m³

Measurement accuracy for PM1.0&PM2.5

0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading

Measurement accuracy for PM10

0~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading
- Real-time output PM1.0、PM2.5、PM10 in μg/m3 available
- All metal shielding, strong anti-interference
- Smaller and thinner structure design, height only 12mm
- High accuracy, high sensitive and quick response (≤8s)
- Signal output optional: UART, I²C

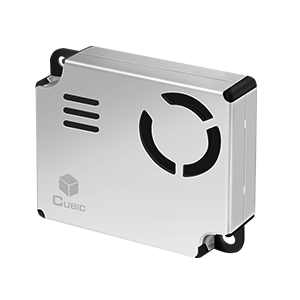

Laser Particle Sensor with Screw Hole
PM2008M-M

PM2008M-M

PM2008M-M add screw hole design laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~5000μg/m³

Accuracy

PM1.0/PM2.5: 0~35μg/m³ : ±5μg/m³ , 35ug/m³~500μg/m³ : ±15% of reading
PM10: 0~100μg/m³ : ±25μg/m³ ,101~500μg/m³: ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Reference instrument

GRIMM
- Hanging ear design for easy installation
- Real-time output PM1.0, PM2.5, PM10 in μg/m3 available
- All metal shielding, strong anti-interference
- Smaller and thinner structure design, height only 12mm
- High accuracy, High sensitive and quick response (≤8s)
- Signal output optional: UART, I²C

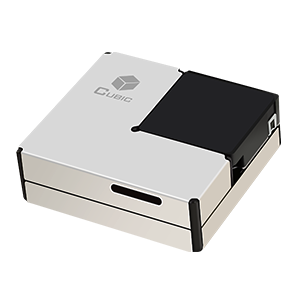

Small Size Laser Particle Sensor
PM2012SE-A/PM2012SE-B

PM2012SE-A/PM2012SE-B

PM2012 smallest size laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measurement particle

0.3μm~10μm

Measurement range

0~5000μg/m³

Accuracy

PM1.0/PM2.5: 0~100μg/m³ , ±10μg/m³ ; 101ug/m³~500μg/m³ , ±10% of reading
PM10: 0~100μg/m³ , ±25μg/m³ ; 101~500μg/m³, ±25% of reading
(GRIMM, 25±2℃, 50 ±10%RH)

Timeto first reading

≤8s
- Smallest & ultra-thin
- High accuracy
- High sensitive and quick response(≤8s)
- Signal output optional: UART, I²C
- Compact structure, light weight, easy to install

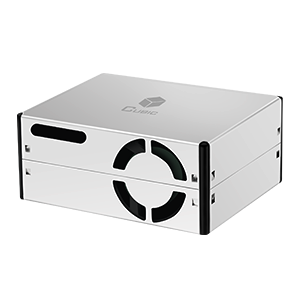

Anti-dust Laser Particle Sensor
PM2009L

PM2009L

PM2009L with anti-dust structure laser particle sensor module is based on laser scattering technology.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measurement particle

0.3μm~10μm

Measurement range

0~5000μg/m³

Measurement accuracy for PM2.5/PM1.0

0~100μg/m³, ±10μg/m³ ;101~500μg/m³, ±10% reading (GRIMM, 25±2℃, 50 ±10%RH）

Measurement accuracy for PM10

0~100μg/m³, ±25μg/m³ ;101~500μg/m³, ±25% reading (GRIMM, 25±2℃, 50 ±10%RH）
- All metal shielding, strong anti-jamming capability
- Particle quantity and mass concentration output simutaneously
- High accuracy, high stability
- High sensitive and quick response (≤8s)
- Compact structure, light weight, easy to install

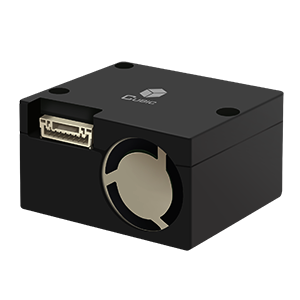

Low Power Particle Sensor PM2105L

PM2105L

PM2105L is a laser particle sensor module for indoor use based on laser scattering technology. This sensor can measure particle concentration size between 0.3μm~10μm exactly and output particle mass concentration PM1.0, PM2.5, PM10 in μg/m³ directly via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Operating principle

Laser scattering

Measured particle size

0.3μm~10μm

Measurement range

0~1000μg/m³

Resolution

1μg/m³
- Low power suit for battery supply application
- Real-time output PM1.0, PM2.5, PM10 in μg/m3 available
- High accuracy, high sensitive and quick response
- Signal output optional: UART, I²C, PWM
- RoHS and Reach compliant
- Air inlet and outlet on different side

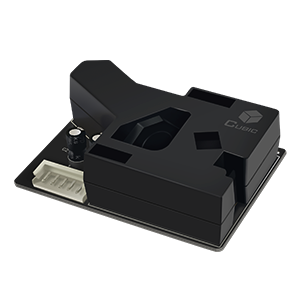

LED Particle Sensor
PM1003

PM1003

PM1003 infrared (LED) particle sensor real time output PM2.5.Designed to detect the variation trend of particle concentration size between 1.0μm~10μm. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

1.0μm~10μm

Measurement range

0~500μg/m³

Accuracy

0~100 μg/m³:±30μg/m³; 100~500 μg/m³: ±30% of reading (25±2℃, 50±10%RH)

Response time

≤30 seconds
- Particle measured size range: 1.0μm~10μm
- Built-in MCU, directly output particle mass concentration (μg/m3)
- Electromagnetic shielding, anti-interference
- High stability and good consistency
- Signal output optional: PWM, UART
- Temperature compensation within whole measurement range

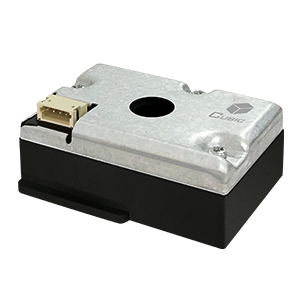

LED Particle Sensor with Dust Correction PM1006K

PM1006K

PM1006K infrared (LED) particle sensor real time output PM2.5 with dust deposition self-correction. It can measure dust concentration in the air by detecting the intensity of scattered light,and output real time concentration via mathematical algorithm and scientific calibration.

Learn more

Specifications Features

Measured particle size

0.3μm~10μm

Measurement range

0~1000μg/m³

Accuracy

±20μg/m³ or ±20% of reading(@voltage 5.0V, 25±2℃, 50±10%RH)

Response time

8s
- Built-in MCU, directly output particle mass concentration (μg/m³)
- Optimized lens design, the sensor can identify 0.3μm particle
- High accuracy, high stability, quick response
- Temperature compensation with the whole measurement range
- Auto lens dust deposition correction
- Compact structure, light weight and easy for installation

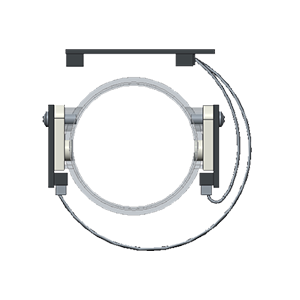

LED Dust Sensor for Vacuum Cleaner
PM1009

PM1009

PM1009 is a LED dust sensor, can accurately measure 4-channel particle which pass through vacuum cleaner's vacuum pipe or vacuum extension rod pipe.

Learn more

Specifications Features

Operating principle

LED infrared

Measurement range

0-10000pcs

Measurement channel

10μm-60μm, 60μm-180μm, 180μm-500μm, 500μm

Response time

0.5s
- Easy integration to customer device;
- 4-channel particle count output for different particle size range: 10μm-60μm, 60μm-180μm, 180μm-500μm and 500μm;
- Quick response;
LED Dust Sensor for Floor Scrubber
PM1010

PM1010

PM1010 is a LED dust sensor can quickly detect the pollution degree of sewage in the suction pipe of floor washing robot.

Learn more

Specifications Features

Operating principle

LED infrared

Measurement range

0-100 levels

Response time

0.5s

Working temperature

-10~60℃; 0~95%RH (non-condensing)
- Sewage pollution level output through UART protocal
- Easy integration to customer device
- Quick Response

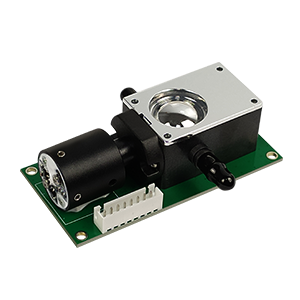

Outdoor Laser Particulate Matter Sensor Module PM3003S

PM3003S

Outdoor PM sensor PM3003S can output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP. Compact size makes it flesible for further product development.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~30,000μg/m³

Output channels

PM1.0, PM2.5, PM4.25(optional), PM10 and TSP

Accuracy

PM1.0/PM2.5: ≤100ug/m³: ±10μg/m³, 100~1000μg/m³: ±10% of reading
PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15%Reading
TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20%Reading
Condition: 0℃~40℃, 50±10%RH, calibration instrument: Met One
- Concentration output PM1.0, PM2.5, PM4.25(optional), PM10 and TSP in μg/m³
- High power industrial grade linear laser, accurate identification
- Flexible to have a pump for sampling
- Cubic API technology for intelligent dust source identification
- Wide working temperature -30℃~70℃, suitable for outdoor working environment
- With voltage regulator design and EMC compatibility, strong antistatic ability
Outdoor Laser Particulate Sensor Module with Sampling Fan PM3006S

PM3006S

Outdoor particulate matter sensor PM3006S can output TSP, PM10, PM2.5 and PM1.0. With PM1.0. It can work and perform well in harsh nature environment.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~30,000μg/m³

Output channels

PM1.0, PM2.5, PM10 and TSP

Accuracy

PM1.0/PM2.5:<50ug/m³: ±5μg/m³;50~1000μg/m³: ±10% of reading
PM10: ≤100μg/m³: ±15μg/m³, 100~1000μg/m³: ±15% of reading
TSP (Note 1): ≤100μg/m³: ±20μg/m³, 100~1000μg/m³: ±20% of reading
Condition: -30℃~70℃, 50±10%RH, calibration instrument: Grimm
- 4 channels concentration output PM1.0, PM2.5, PM10 and TSP in μg/m³
- High power industrial grade linear laser, accurate identification
- Vehicle-grade constant current sampling structure fan, ensure constant stable sampling flow
- Cubic API technology for intelligent dust source identification
- Wide working temperature -30℃~70℃, suitable for outdoor working environment
- With voltage regulator design and EMC compatibility, strong antistatic ability.
2.83LPM Laser Particle Count Sensor Module PM3003SN

PM3003SN

Cleanroom optical particle counter sensor core module PM3003SN can output 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm and 10μm (PCS/L, pcs/m³, pcs/28.3L ).

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf)

Output channels

>0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm

Resolution

1 pcs/L
- Output particle number (pcs/L, pcs/m³, pcs/28.3L) in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
- High power industrial grade linear laser, accurate identification
- Flexible to have a pump for sampling
- Wide working temperature -30℃~70℃
- With voltage regulator design and EMC compatibility, strong antistatic ability
1LPM Laser Particle Count Sensor Module

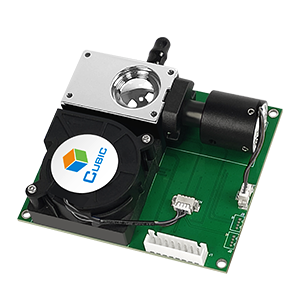

PM5000S

PM5000S

Cleanroom particle count sensor PM5000S can accurately detect and count different size of suspended particles, it is widely used in various of clean zone.

Learn more

Specifications Features

Operating principle

Laser scattering

Measurement range

0~10,000,000 pcs/L (1pcs/L=28.3pcs/cf)

Output channels

>0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm

Resolution

1 pcs/L
- Output particle number (pcs/L) in 6 channels including 0.3um, 0.5um, 1.0um, 2.5um, 5.0um, 10um
- High power industrial grade linear laser, accurate identification
- Vehicle-grade constant current sampling structure fan, ensure constant stable sampling flow
- Wide working temperature -30℃~70℃
- With voltage regulator design and EMC compatibility, strong antistatic ability
